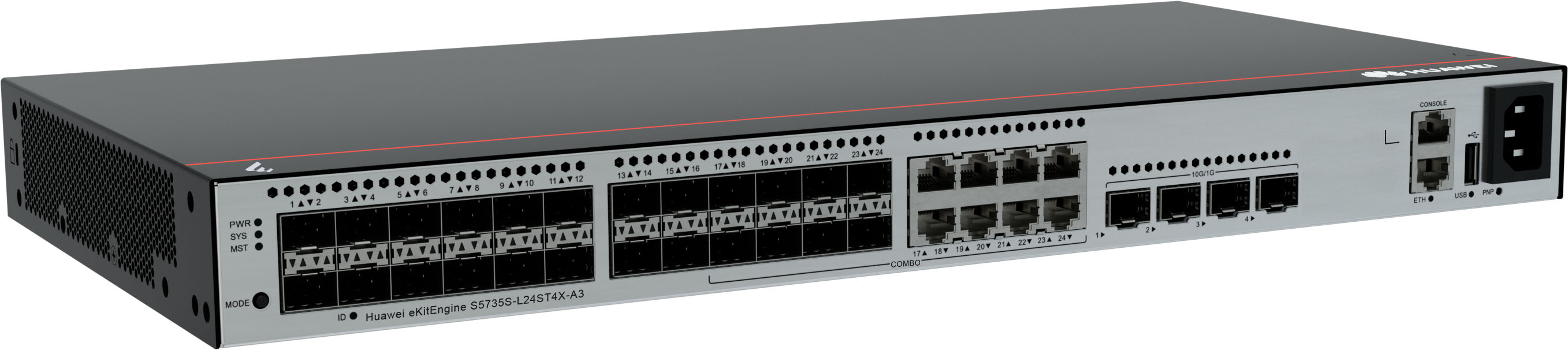

                                                                產品名稱：華為坤靈全光接入交換機

                                                                規格型號：S5735S-L24ST4X-A3

                                                                交換容量    672 Gbps/6.72 Tbps
                                                                包轉發率    126 Mpps
                                                                固定端口    24個千兆SFP端口，其中8個復用的千兆10/100/1000Base-T以太網端口Combo，4個萬兆 SFP+
                                                                機箱尺寸（寬x 深x 高，單位：mm）    442x220x43.6
                                                                機箱高度    1U
                                                                滿配重量（含包材）    3.55 kg
                                                                電源類型    內置 AC 電源
                                                                額定電壓    100-240V AC；50/60Hz
                                                                最大電壓    交流輸入：90V AC～264V AC；47Hz～63Hz
                                                                最大功耗    41.7W
                                                                噪聲    常溫聲功率：38.1 dB (A) 高溫聲功率：58.6 dB (A) 常溫聲壓：26.1 dB (A)
                                                                長期運行溫度    -5℃～+50℃
                                                                短期運行溫度    -5℃～+55℃
                                                                存儲溫度    -40℃～70℃
                                                                相對濕度    5%～95%（無凝露）
                                                                業務口防雷    NA
                                                                電源口防雷    差模±6kV，共模±6kV
                                                                散熱方式    風冷散熱，智能調速
